Ufoil Polyethylene Bubble Insulation

About Ufoil

Ufoil Polyethylene Bubble Insulation is a foil insulation product designed for use in dry-lining applications, to sit between the battens and the brick/blockwork. It offers superior water-vapour resistance, thermal resistance, durability and it helps boost U-Value to 0.35 or better.

Ufoil is the perfect insulation solution when space is at a premium, and cavities are not large enough to accept thick insulation materials, such as mineral wool or rigid thermoset phenolic insulations. Ufoil is easy to install and, unlike other insulation materials, does not produce dust and fibres.
Ufoil contributes measurably to the airtightness of a building. This is a significant benefit, as the average home in the UK loses approximately 15% of the total heat produced as a direct consequence of drafts. Effective airtightness is also of considerable benefit to the structural elements of a building, as the condensation created when moist air meets cold building elements can lead to damp, rot and corrosion.

Features & Benefits

  • High thermal reflectance
  • Robust, durable & lightweight
  • Environmentally friendly CFC & HFC Free
  • Clean & easy to handle
  • Rot proof
  • Acts as a vapour barrier
  • Improves air tightness

Applications

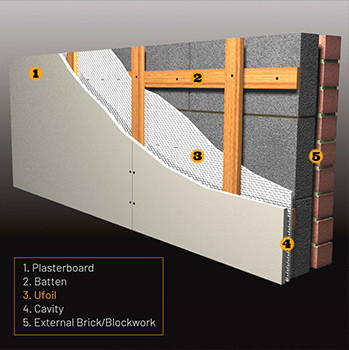

Ufoil Annotation

  • Wall
  • Roofs
  • Floors

There are three Ufoil options:

  • 1BDA/A-1: single layer of bubble with foil to one side
  • 1BD/A: single layer of bubble with foil to both sides
  • 2BD/A: two layers of bubble with foil to both sides

Specification

Finish: 1BD/A-1       1BD/A      2BD/A
Description:Single layer of bubble with foil to one side Single layer of bubble with foil to both sides Two layers of bubble with foil to both sides
Dimensions:Thickness (mm) 448
Sheet weight (nominal gsm)180277375
Roll length (m)255025502550
Roll width (m) 1.051.21.51.051.21.51.051.21.51.051.21.51.051.21.51.051.21.5
Roll weight (calculated kg)4.7255.46.759.4510.813.57.271258.3110.387514.542516.6220.7759.8437511.2514.062519.687522.528.125
Performance: Thermal performance with 20mm clear cavity to reflective face0.86m2K/w0.88m2K/w0.93m2K/w
Water vapour resistance >150 MNs/g>150 MNs/g>150 MNs/g

Datasheets

Download our Ufoil Brochure

To ensure you have the latest version of this document call 01925 860 999.
